# Down Hill Crash

## Focus Questions

• How far can a car push a bale of different weight?
• Can the car crash into a bale and not move the bale?
• What is the least amount the bale will move?
• How does adding weight (washers) to the bale change the distance it will slide when it is hit by the car?
• How does changing the angle change how far it will slide?
• How does adding weight to the car change the distance the bale will slide?

## Procedure

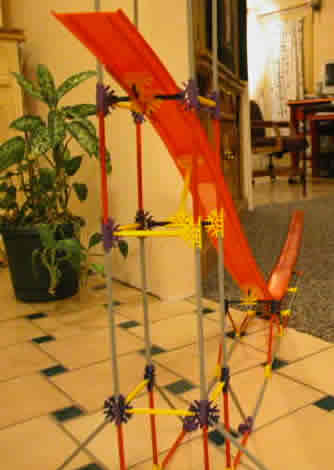

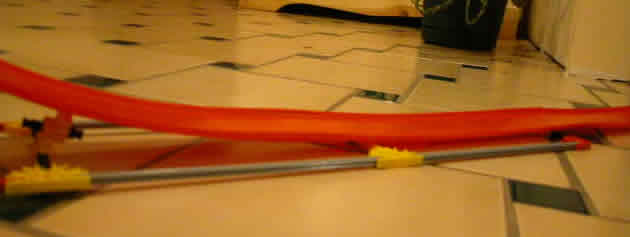

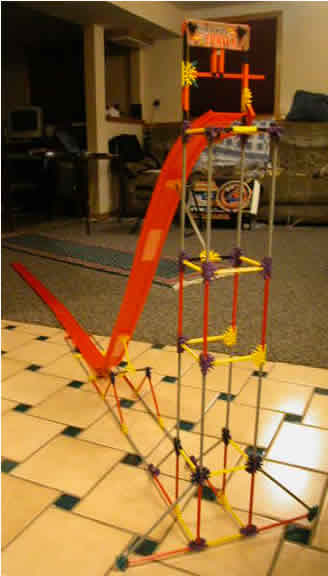

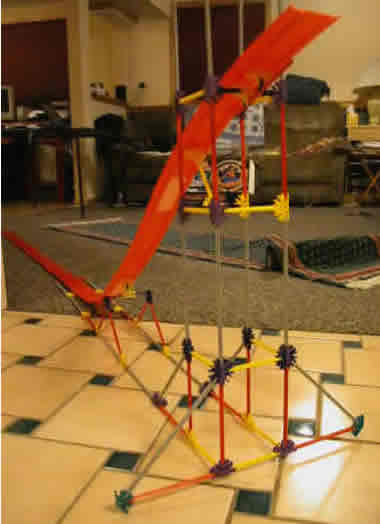

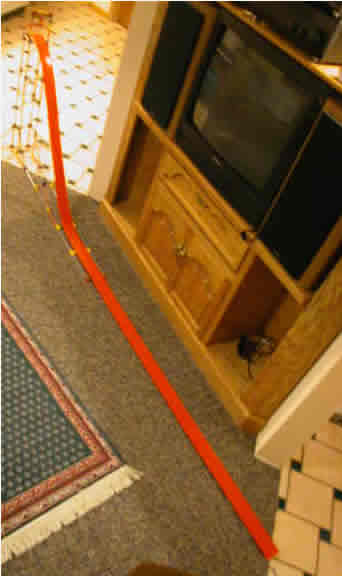

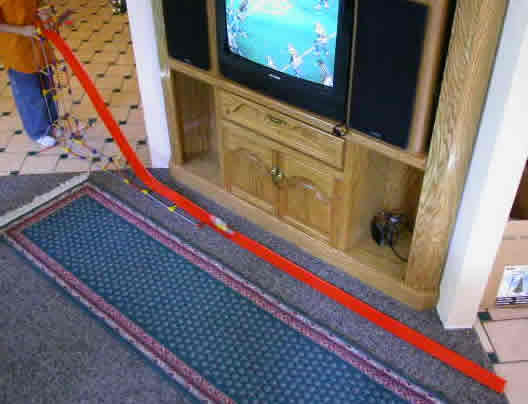

The tower for this track is the same as the K'Nex Down Hill Thrill tower. However, it is modified to make it shorter for some of the investigations. The track is from two sets, which are joined with the track stretched across the carpet with the car coming off onto tile.

• Distance was measured from the end of the track.
• The number of washers was changed from zero to seventeen for the investigation data below.
• Three trials were made and recorded in a spreadsheet and graphed with the software.
• Learners who participated were a mixed age group from 10-12 years old.

## Data & graphs

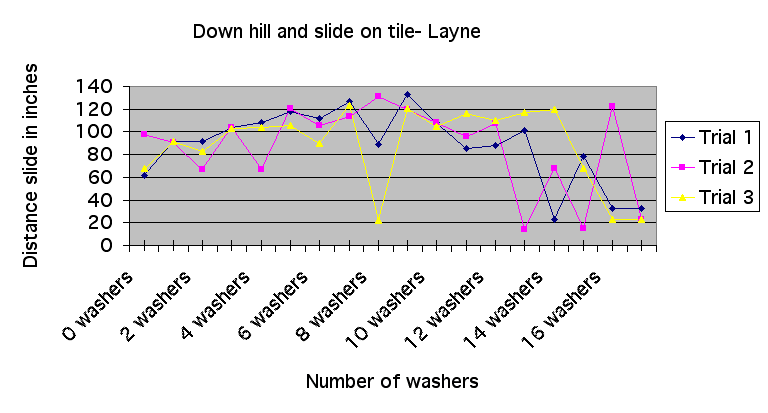

### Different Mass & Distance the Car Traveled on Tile from the End of the Track

Number of washers

Distance in inches

0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17
Trial 1 62 92 92 104 108 118 112 127 89 133 108 85 88 101 23 78 33 33
Trial 2 98 91 67 104 67 121 106 114 131 120 108 96 107 14 68 15 122 23
Trial 3 68 92 83 103 104 106 90 123 22 121 105 116 110 117 120 68 23 23
Mean 76 92 81 104 93 115 103 121 81 125 107 99 102 77 70 54 59 26
