Introduction

A variety of challenges, investigations, and problems can be created related to bridges. This one used K'Nex as building materials. You may substitute other materials. I have also used oaktag, straws, thread, and straight pins.

Bridge vocabulary

• Beam
• Deck
• Load
• Pier
• Span

Source for the definitions of these and more bridge terms.

Investigation notes

Procedure

• Learners are shown photos of bridges.
• Ask. Can you build a sturdy bridge with K'Nex?
• Build bridges
• Share constructed bridge designs
• Introduce the three kinds of forces that affect the stability of bridges.
  1. Tension - pull or stretch
  2. Compression - push together
  3. Torsion - twist
• Tell. A simple way to test a bridge for compresion, tension, or torsion forces is to tie a piece of thread or string between two connectors that are connected with a girder and remove the girder. You can tell if the thread gets tighter, looser, or twists what kind of forces there are at different places on your bridge.
• Test bridges
• Share results.

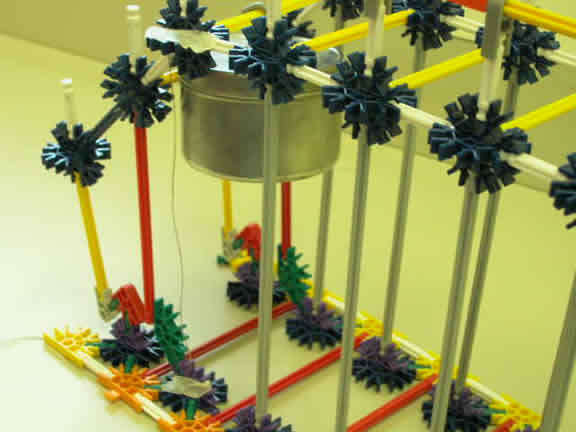

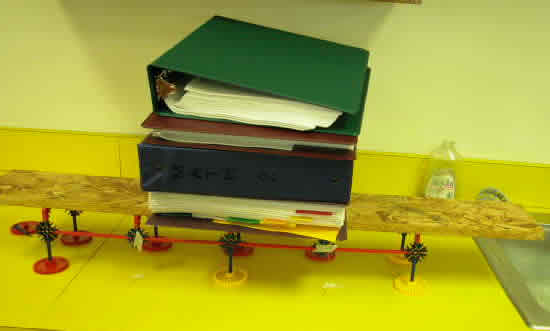

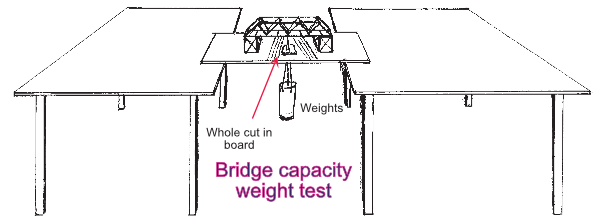

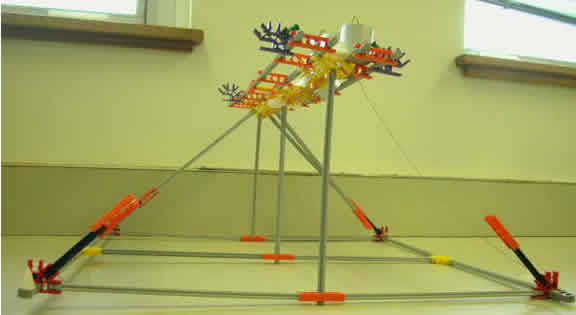

Compression - capacity test

Who would have thought a bridge could win awards? Does that make this bridge the GOAT?

Statements made when testing bridges:

• When the weight shifted, one side displayed tension while the opposite side showed compression.
• Once we removed 2 girders, there was some slight compression at the point of removal.
• When we removed two girders, force was applied which caused compression.
• When we removed a smaller girder and a larger girder, force was applied which caused tension.

C. Stading, K. Flanagan, L. Haisch, K. Dusatko, S. Simpson, A. Baumann, M. Tobias, Angie Simpson, M. Foster, and C. Mettler

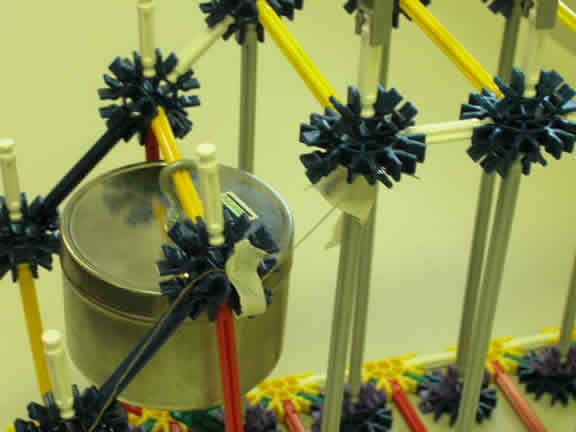

Test bridges

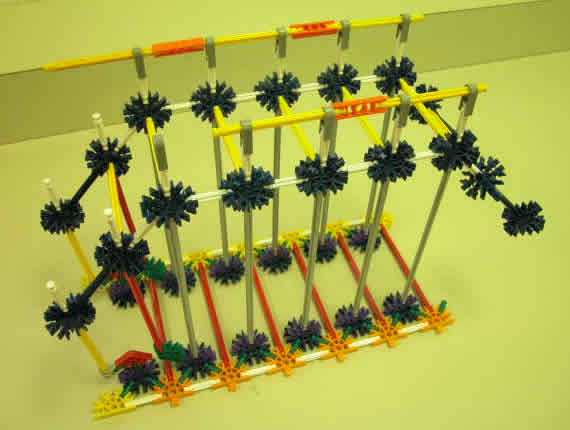

Piers & beam



Piers, beam, & rails

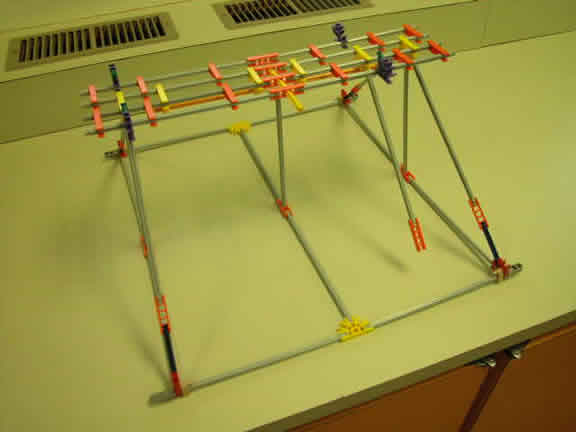

Trusses, pier, & deck

Bridge photo album

Suspension bridge with stone piers

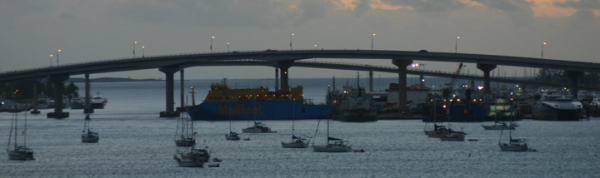

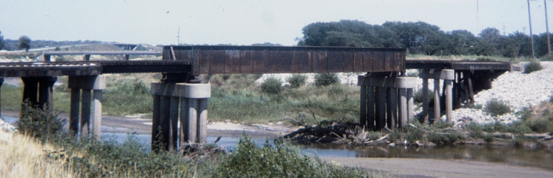

Beam bridge with piers





Trestle below road bridge





Beam bridge with piers

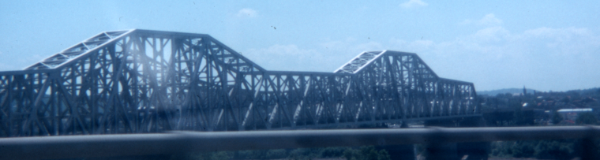

Tressle & beam bridge

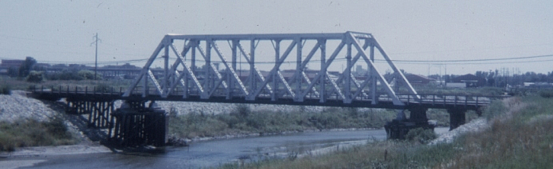

Tressle above deck bridge with piers and some tressle below

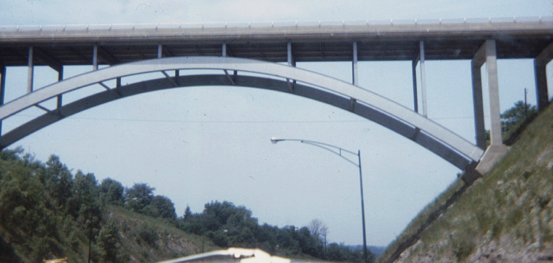

Arch below deck bridge





Many stone arches bridge

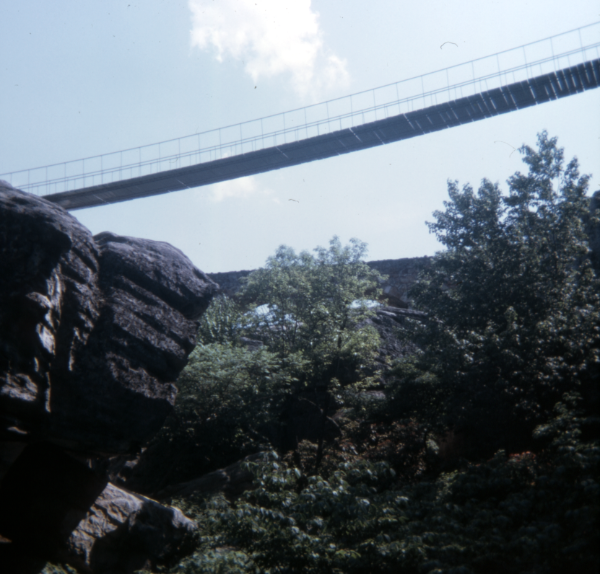

Swinging bridge Rock City

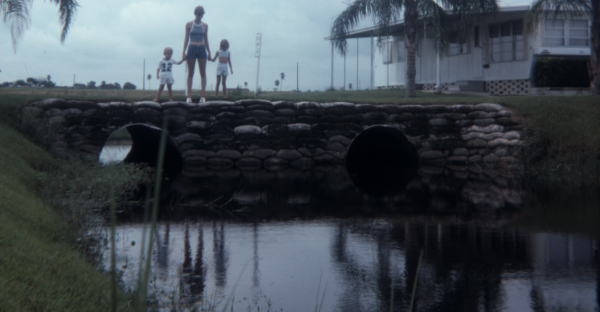

Stone bridge with culverts

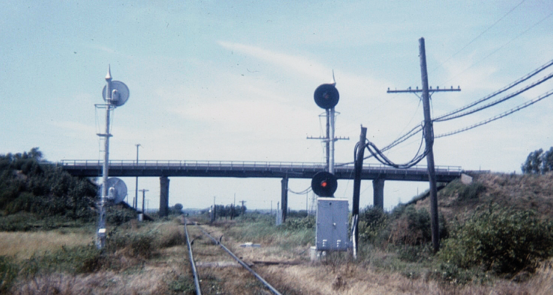

Beams and piers bridge

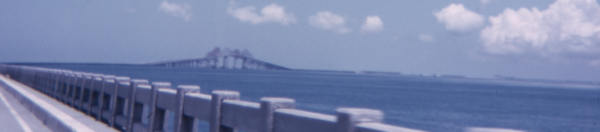

First Sunshine skyway bridge in Florida 1977

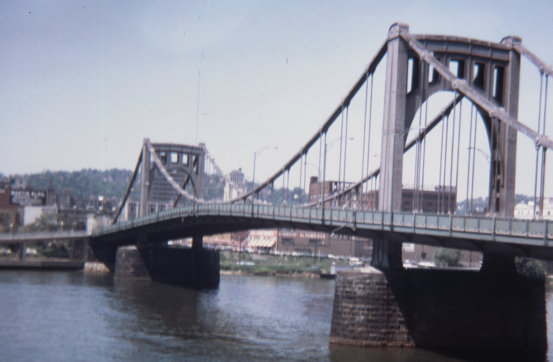

Suspension plus pier & beam bridge

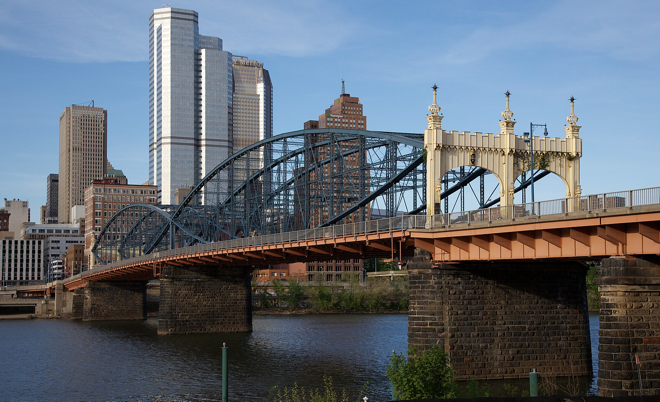

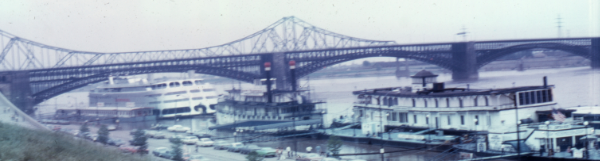

Suspension above & arch below bridge - Pittsburgh Monogahala River

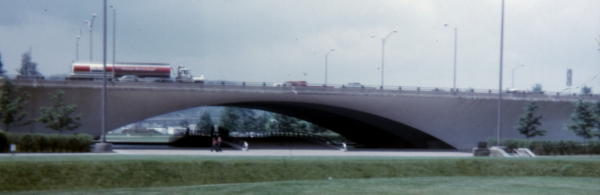

Arch bridge in Point Park Pittsburgh

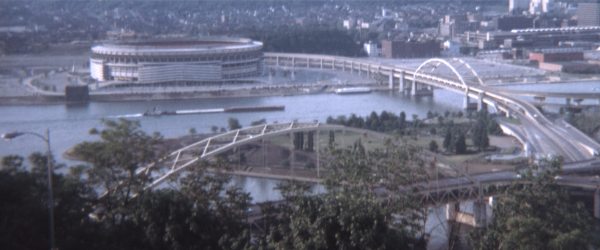

Three rivers bridges in Pittsburgh





Tressel bridge above road

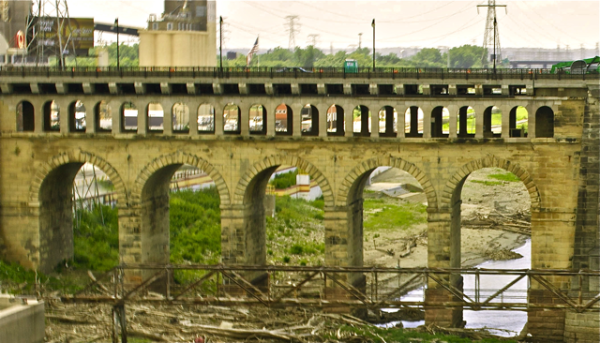

Large and small arches bridge

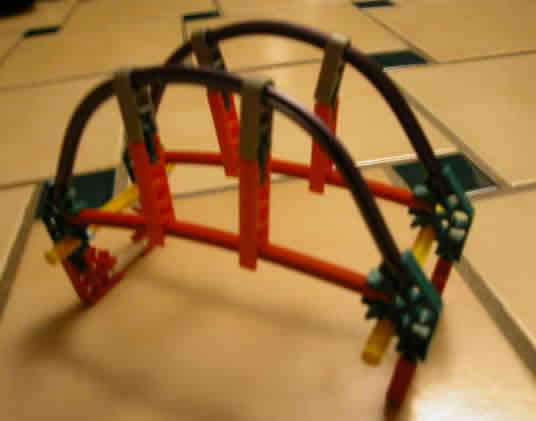

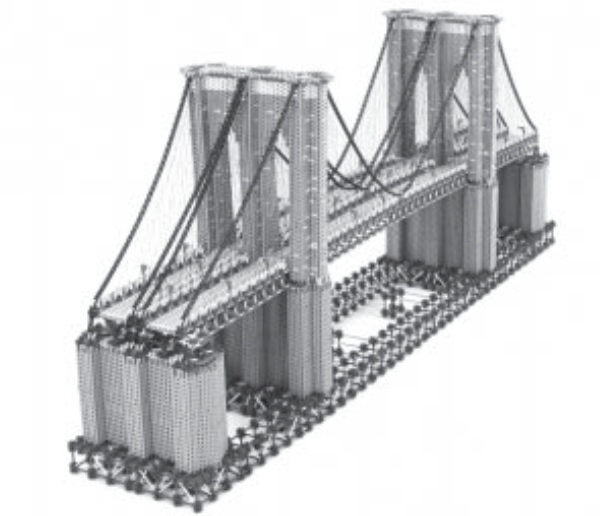

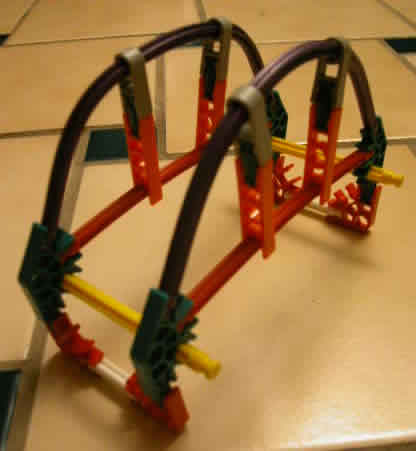

K'Nex suspension bridges
